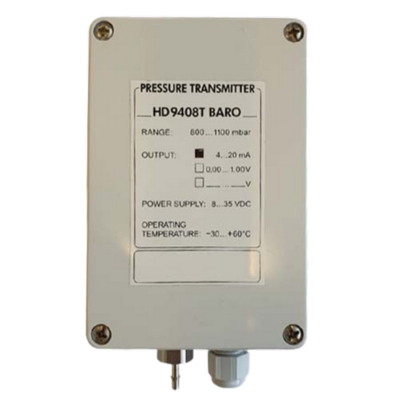

Atmospheric pressure transmitter

Request for quote
Contact us
This robust sensor measures atmospheric pressure with very low drift over time. It is ideal for meteorological, industrial and clean room applications.

This robust sensor measures atmospheric pressure with very low drift over time. It is ideal for meteorological, industrial and clean room applications.
Description Features Resources
1.

Compatibility

This transmitter is fully compatible with LoRa® SPY U and Nano SPY U recorders, making it easy to integrate into your existing surveillance systems.

Description

  • Cost-effective solution for atmospheric pressure compensation

  • Excellent performance in controlled environments

  • Ideal for use in clean rooms

  • Compatible with Nano SPY U or LoRa SPY U data loggers

  • Connection diagram available in the data sheet

Features

Measurement range
800-1100mbar
Accuracy
±0.4 mbar at 20°C
Power supply
8-35 VDC
Output
2x 0-1VDC
Dimensions
120x80x55mm
Stabilisation time
1 sec. to 99% of measurement
Response time
200msec. after pressure stabilisation
Operating conditions
-30°C to 60°C

Resources

Fiche Technique Transmetteur de pression
