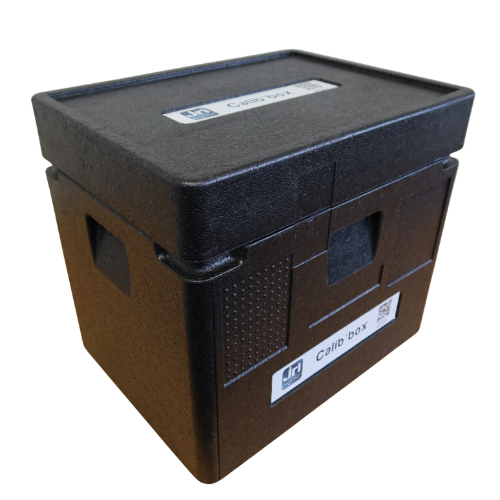

Calib’Box S

Calib’Box S is one of the means of calibration required to use the self-calibration function of MySirius.

Guided self-calibration

Calibrate your Nano SPY sensors easily via JRI-MySirius, with step-by-step instructions, remote supervision and a compliance certificate supplied automatically.

Precision

Stable, consistent temperature for calibrating several sensors simultaneously, guaranteeing reliable, reproducible measurements.

Automatic adjustment

Automatically corrects your sensors in the event of significant drift, guaranteeing reliable measurements and optimum performance over time.

Description

A temperature generator using the latest eutectic plate technology combined with effective insulation material
Generates a constant temperature of 0°C with excellent stability and homogeneity
A remote calibration service supervised by the JRI metrology laboratory is available
- Follow the instructions on MySirius

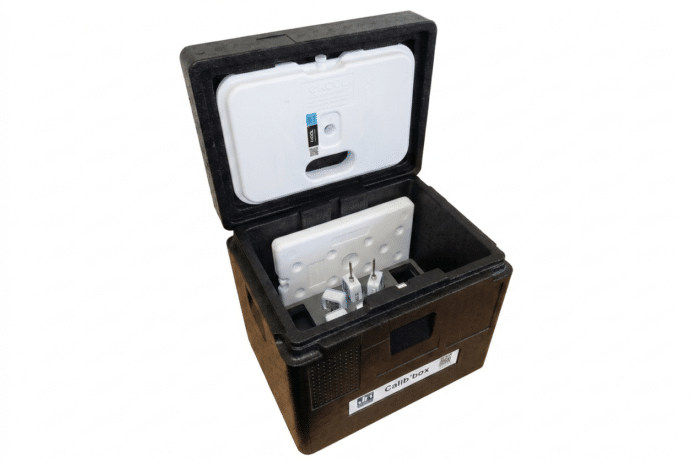

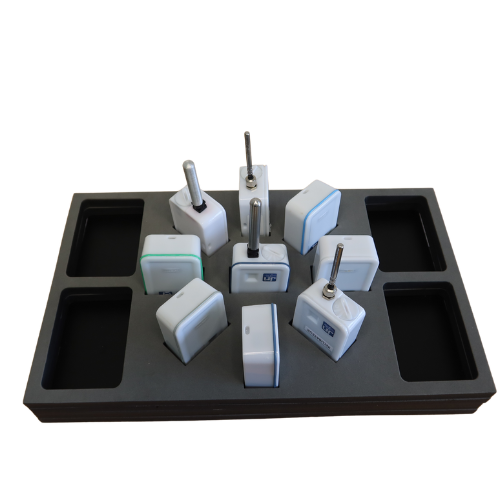

- Place a temperature reference and the probes to be calibrated in the box
- Press START
A notification is sent at the end of the operation and the calibration certificates can be consulted online
To use it, you need to order a single self-calibration or a package of 10, 50 or 100 directly from MySirius

Advantages :

Easy to use
Excellent consistency and stability
Generation of genuine verification reports compliant with current international metrological standards
Automatic adjustment

Features

Dimensions

395 x 295 x 350 mm

Weight (with eutectic plate)

~ 6.5 kg

Interface

QR Code showing how to use it

Stability

Use with plate: ±0.02°C
Use in ice bath: ±0.01°C

Homogeneity

Use with plate: ±0.03°C
Use in ice bath: ±0.02°C

Content

2 x 2 eutectic plates + foam support

Resources

Fiche Technique CalibBox_S

Download Loading...

Notice Utilisation CalibBox_S
