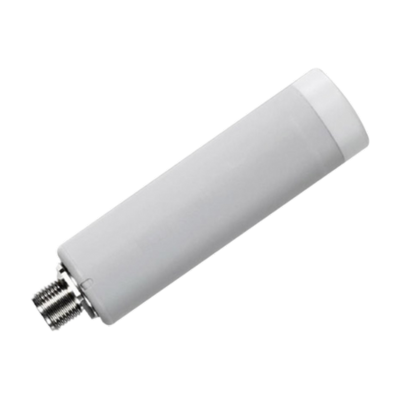

CO₂ transmitter

Request for quote
Contact us
Designed to monitor CO₂ levels in incubators, this sensor incorporates infrared (IR) technology to meet the requirements of applications such as In Vitro Fertilisation and cell biology.

Designed to monitor CO₂ levels in incubators, this sensor incorporates infrared (IR) technology to meet the requirements of applications such as In Vitro Fertilisation and cell biology.
Description Features Resources
1.

Precision

Thanks to its high-performance remote sensor, the CO₂ transmitter guarantees reliable and stable measurement in controlled environments such as incubators.

Description

  • CO₂ transmitter for incubator monitoring.

  • Remote sensor with low drift and very good accuracy

  • Compatible with un Nano SPY U or LoRa SPY U loggers

  • Calibration under COFRAC accreditation is possible.

Features

Measurement range
From 0 to 20%.
Accuracy at 25°C and 1013 hPa
±0.1% up to 5% / ±0.2% up to 8% / ±0.5% from 8 to 20%.
5% temperature sensitivity
<±0.05% from 0 to 50°C
5% pressure sensitivity
<±0.05 from 700 to 1100hPa
Consumption
<2,5W
Power supply
230 VAC
Output
4-20mA
Weight
45g
Dimensions
96mm, Ø25mm
Options
Flat cable 1m Ref. 11960 / Mounting bracket Ref.11297
