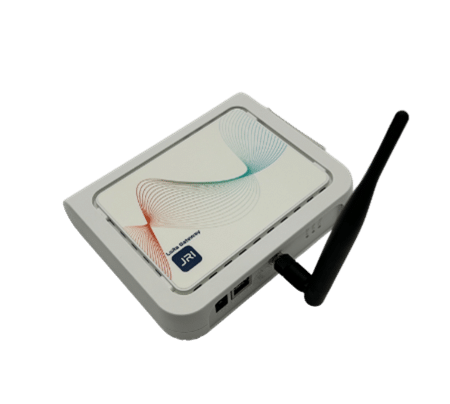

Gateway for LoRa SPY connected sensors

Request for quote
Contact us
Description Features Resources
1.

Compatibility

The LINK module is fully compatible with all Nano SPY wireless recorders and Nova SPY 3-in-1 sensors. Thanks to its automatic detection, it supports all active sensors in the vicinity. It integrates easily into any JRI connected environment, with native compatibility with the MySirius application for data processing, and with MyNanoView for local viewing, even offline.

Description

  • The LoRaTM Gateway provides private network coverage for long-range LoRa SPY

  • Installed on a local Ethernet network, or under 4G coverage, it sends measurements to JRI MySirius.

  • The data collected is available on the secure JRI Cloud or on a local private server.

Benefits that offer you flexibility and ease of use with the JRI-MySirius temperature monitoring solution

  • LoRaTM connectivity within a secure private network
  • Quick and easy to deploy
  • Available configurations: Ethernet and 4G

Features

Cellular frequency band
4G/3G
LoRa radio frequency
902 - 902 MHz and 863 - 870 MHz
Input power
100 - 240 VAC 50/60Hz 0.4A - External adapter to input 2.5A 5VDC
Dimensions
165x133x32 mm
Weight
1,36kg
Compliance
FCC Part 22,24,27 EN62311, EN301 511; EN301 908-1-2, EN301 908-1-13, EN300-220
References
See Technical Data

Resources

Fiche Technique Gateway LoRa
Download Loading...
Notice Gateway LoRa
Download Loading...
