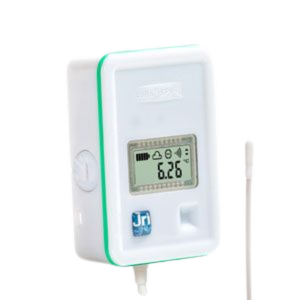

LoRa SPY T2 temperature logger for refrigerators

The LoRa® SPY T2 long-range temperature sensor connected to the LoRaWANTM network designed to monitor refrigerators

The LoRa® SPY T2 long-range temperature sensor connected to the LoRaWANTM network designed to monitor refrigerators

1.

Connectivity

LoRa® SPY sensors automatically transmit their measurements via an operated network (LoRa™ from a telecom operator) or a private network (local gateway). The data, which is secure and encrypted, is then hosted on the JRI MySirius cloud or on a client server, and can be consulted in real time from the MySirius application.

2.

Application

Designed for monitoring temperature-controlled enclosures such as cold rooms, refrigerators, freezers, etc.

3.

Active surveillance

Automatically issues alerts in real time if tolerance thresholds are exceeded, ensuring optimum responsiveness for the safety and quality of operations.

Description

  • Temperature measurement and recording via remote sensor for accurate monitoring.

  • Secure data transmission to JRI Cloud via LoRa™ network or via Micro Gateway module on private network.

  • Designed for temperature-controlled enclosures (cold rooms, refrigerators, freezers), with convenient external magnetic mounting.
  • Direct display of measurements on integrated LCD screen for easy and immediate consultation.

  • Pack of identification rings included for quick location of sensors and their parameters

Des avantages qui vous offrent adaptabilité et confort d'utilisation avec la solution de surveillance de températures JRI-MySirius

  • Connectivité longue portée LoRaWAN

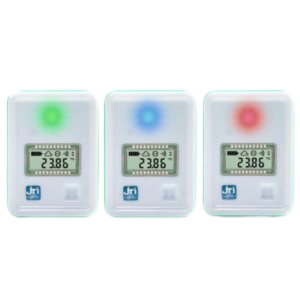

  • Facile à utiliser: LoRa SPY T2 est prêt à l'emploi et dispose de voyants de fonctionnement et d'alarmes
  • Affichage LCD
  • Excellente précision de mesure
  • Sonde externe

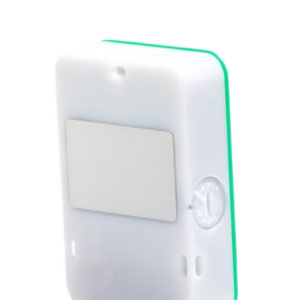

  • Œillets de fixation et aimants intégrés
  • Batterie interchangeable
  • Conforme à la norme EN 12 830

Features

Dimensions
87 x 63 x 24 mm
Weight
100 g
Measurement range
standard version: -50°C to +105°C incubator version: -30°C to +50°C
Measurement accuracy
standard version: ±0.3°C from -20°C to +30°C and ±0.5°C outside this range standard version: ±0.2°C
Memory
10,000 time-stamped measurements
Radio range
Up to 16 km in free field
Interface
Operation and alarm indicator lights, touch-sensitive On/Off button, LCD display
Power supply
Interchangeable 3.6V lithium battery
Autonomy
2 years
References
See the table in the data sheet
Sensors
PT 100 External
Frequency bands
868 MHz or 915 MHz
Compliance
CE, ROHS, EN 300 200, NF EN 12830
Temperature sensor
Remote with 30cm or 3m cable

Resources

Data Sheet LoRaSPY T2
Download Loading...
User Guide LoRaSpy
Download Loading...
