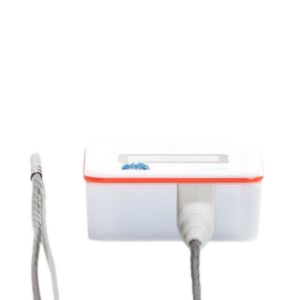

LoRa SPY T3 low temperature data logger

Request for quote
Contact us
LoRa® SPY T3 sensor connected to the LoRaWAN long-range network to monitor freezers or cryogenic tanks

LoRa® SPY T3 sensor connected to the LoRaWAN long-range network to monitor freezers or cryogenic tanks
Description Features Resources
1.

Low temperatures

Designed for monitoring very low temperature sample storage enclosures such as cryogenic tanks and -80°C freezers

2.

Connectivity

LoRa® SPY sensors automatically transmit their measurements via an operated network (LoRa™ from a telecom operator) or a private network (local gateway). The data, which is secure and encrypted, is then hosted on the JRI MySirius cloud or on a client server, and can be consulted in real time from the MySirius application.

3.

Active surveillance

Automatically issues real-time alerts if tolerance thresholds are exceeded, ensuring optimum responsiveness for the safety and quality of operations.

Description

  • Remotetemperature measurement and recording for reliable monitoring

  • Designed for very low temperature storage enclosures (cryogenic tanks, -80°C freezers)

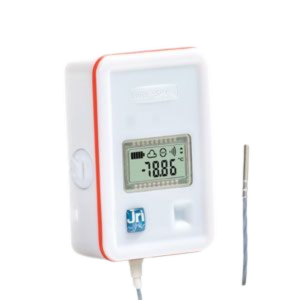

  • External magnetic mounting for real-time display of measurements on built-in LCD screen

  • Real-time alerts if tolerance thresholds are exceeded, for rapid intervention

  • Secure data transmission to the JRI Cloud via LoRaWAN™ network or private Micro Gateway module

  • Simplified sensor calibration with Lab’express and Mini Lab’express services

Benefits that offer you flexibility and ease of use with the JRI-MySirius temperature monitoring solution

  • Long-range LoRaWAN connectivity

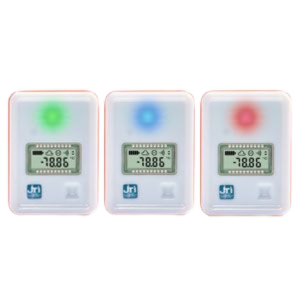

  • Easy to use: LoRa SPY T3 is ready to use and has operating and alarm indicators
  • LCD display
  • Excellent measurement accuracy
  • External probe

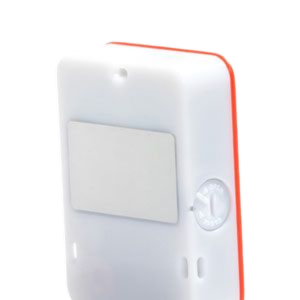

  • Integrated mounting eyelets and magnets
  • Interchangeable battery

Features

Dimensions
87 x 63 x 24 mm
Weight
100 g
Measurement range
-200°C to 0°C
Measurement accuracy
±0.2°C from -20°C to 0°C and ±0.5°C outside this range
Memory
10,000 time-stamped measurements
Radio range
Up to 16 km in free field
Interface
Operation and alarm indicator lights, touch-sensitive On/Off button, LCD display add line line feed
Power supply
Interchangeable 3.6V lithium battery
Autonomy
2 years
References
See the table in the data sheet
Sensors
PT 100 class A external - Ø2.9mm Teflon® cable
Frequency bands
868 MHz or 915 MHz
Temperature sensor
Remote with 50cm or 6m cable

Resources

Data Sheet LoRa SPY T3
Download Loading...
User Guide LoRaSpy
Download Loading...
