LoRa SPY TH temperature and humidity data logger for climate comfort

The LoRa® SPY TH long-range temperature and humidity data logger connected to the LoRaWAN network designed to monitor climatic conditions in buildings.

The LoRa® SPY TH long-range temperature and humidity data logger connected to the LoRaWAN network designed to monitor climatic conditions in buildings.

1.

Applications

This model has been designed for monitoring ambient conditions in climate control and HVAC applications (data centres, museums, archive centres, storage warehouses, etc.).

2.

Connectivity

LoRa® SPY sensors automatically transmit their measurements via a LoRa™ operated network or private network. The data, secured and encrypted, is then hosted on the JRI MySirius cloud or on a client server, and viewable in real time from the MySirius application.

3.

Active surveillance

Automatically issues real-time alerts if tolerance thresholds are exceeded, ensuring optimum responsiveness for the safety and quality of operations.

Description

  • LoRa® SPY TH connected data logger measuring and recording temperature and humidity via its internal sensors.
  • Designed for monitoring climatic conditions in buildings, with a discreet design

  • Ideal for climate comfort and HVAC applications, as well as data centres, museums, archive centres and storage facilities
  • Real-time readingsdisplayed on an integrated LCD screen

  • Instant alerts when tolerancesare exceeded for rapid response.
  • Secure data transmission to the JRI Cloud via LoRaWAN™ network or private Micro Gateway module.

Des avantages qui vous offrent adaptabilité et confort d'utilisation avec la solution de surveillance de températures JRI-MySirius

  • Connectivité LoRaWAN à longue portée
  • Facile à utiliser: LoRa SPY TH est prêt à l'emploi et dispose de voyants de fonctionnement et d'alarmes
  • Affichage LCD
  • Excellente précision de mesure

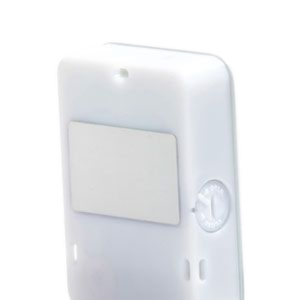

  • Œillets de fixation et aimants intégrés
  • Batterie interchangeable

Features

Dimensions
87 x 63 x 24 mm
Weight
100 g
Measurement range
-30°C to +70°C and 0 to 100% RH
Temperature measurement accuracy
±0.2°C from -20°C to 0°C and ±0.5°C outside this range
Accuracy of humidity measurement between +15°C and +25°C from 20% to 80%.
±4% RH and ±5% RH outside this range
Radio range
Up to 16 km in free field
Interface
Operation and alarm indicator lights, touch-sensitive On/Off button, LCD display
Power supply
Interchangeable 3.6V lithium battery
Autonomy
2 years
Memory
10,000 time-stamped measurements
Sensors
Digital SENSIRION SHT25
Frequency bands
868 MHz or 915 MHz
References
See the table in the data sheet
Compliance
CE, ROHS, FCC, EN 300 200

Resources

Data Sheet LoRa SPY TH
Download Loading...
User Guide LoRaSpy
Download Loading...
