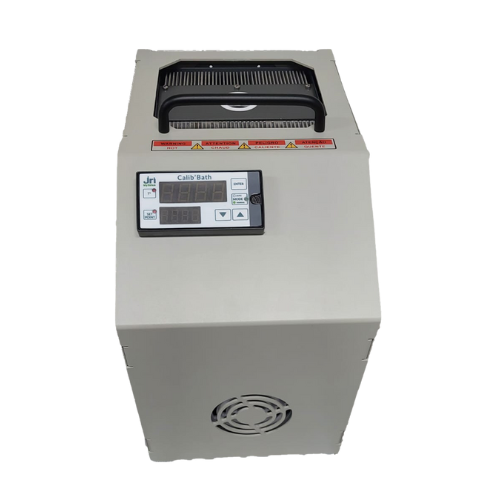

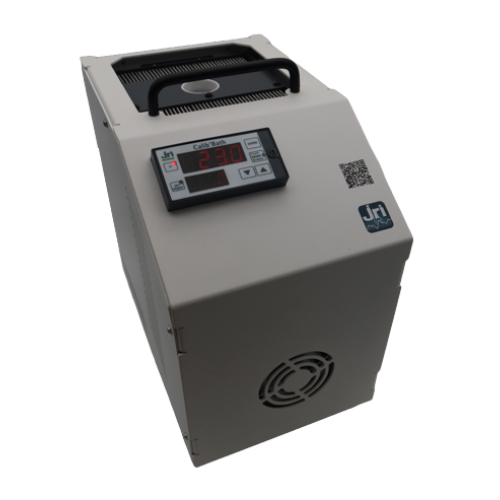

Calib’Bath is a dry JRI calibration bath for temperatures ranging from -20°C to +100°C.

Calib’Bath is a dry JRI calibration bath for temperatures ranging from -20°C to +100°C.
Description Features Resources
1.

Precision

Excellent quality thanks to homogeneity and stability

2.

Easy to use

Ready-to-use bath perfectly suited for metrological operations on your remote probes.

3.

Various inserts

Enhance calibration capabilities

Description

  • Calib’Batn is a dry calibration bath that provides a stable and precise temperature step.

  • It enables quality calibrations to be carried out automatically using the MySirius self-calibration procedure.
    • excellent homogeneity
    • precise temperature stability

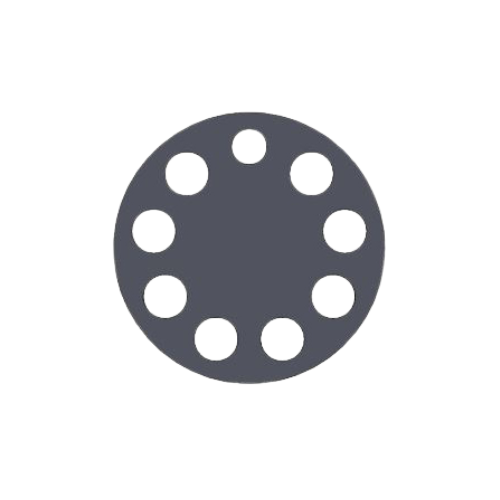

  • Standard insert for automatic and easy calibration of 8 T2 and T3 probes, with well for standard probe

  • Optional: an insert adapted to JRI digital probes is available for calibrating and adjusting 5 digital probes (Evolution, X², Green).

Atouts :

  • Facile d'utilisation
  • Excellente qualité grâce à son homogénéité et sa stabilité
  • Différents inserts pour augmenter ses possibilités d'étalonnage

Features

Dimensions
315 x 180 x 270 mm
Weight
~ 12 kg
Interface
LCD display
Measurement range at 23°C
-20°C to +100°C
Accuracy
±0.1°C
Stability
±0.02°C
Heating time
25 min (from 25°C to 140°C)
Cooling time
25 mn (from 25°C to -25°C)
Power supply
115 - 230 Vac / 50-60 Hz
Insert available
  • Standard dry insert for T2 or T3 type probes - included
  • Dry insert for Digital Sensor, Digital Sensor X2 and Green Digital Sensor probes
See references/photos in data sheet
