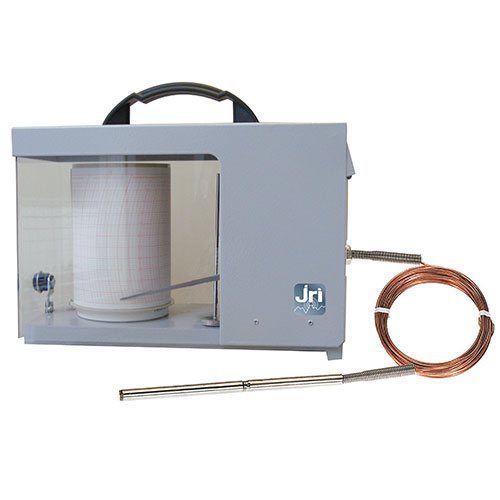

Visiotambour Thermometer Remote Recorder

Request for quote
Contact us
Description Features Resources
1.

Rugged

These recorders are protected by a sturdy grey metal housing with carrying handle. The panoramic glass cover, made of crystal-clear plastic, allows the diagram to be examined over the entire circumference of the cylinder without having to remove it, the entire circumference of the cylinder.

Description

  • VisioTambour Remote Thermograph recorders are direct-acting devices (the sensing element acts without an intermediary).

  • Measures and records temperature on a paper diagram, using a fiber-tip pen

  • Features a bi-metallic thermometer element

  • The recording diagram is wound on a cylinder whose rotation is ensured by an entirely autonomous clockwork movement

    • Battery-powered quartz electric (1 revolution in 24h and 7 days)
    • Spring-loaded mechanical (1 revolution in 24h and 7 days)

Features

Accuracy
+/-1°C
Equipped
  • a sheet metal hood
  • Epoxy-painted light-alloy baseplate
  • a safety lock
  • a tamper-proof reset device
Dimensions
285 mm x 200 mm x 135 mm
Supplied with
  • 100 diagrams
  • a feather
  • a battery (1.5V for quartz movements)
